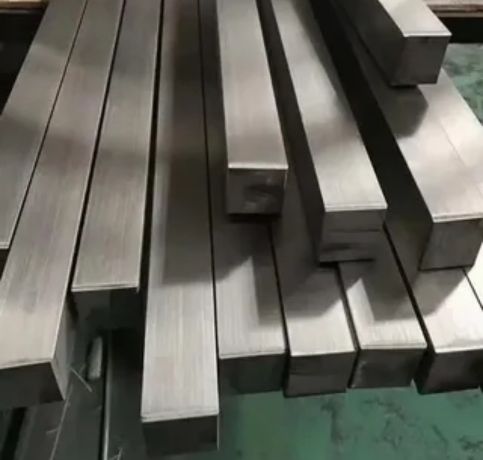

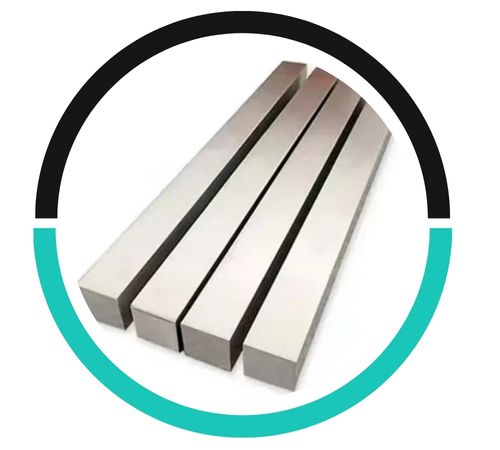

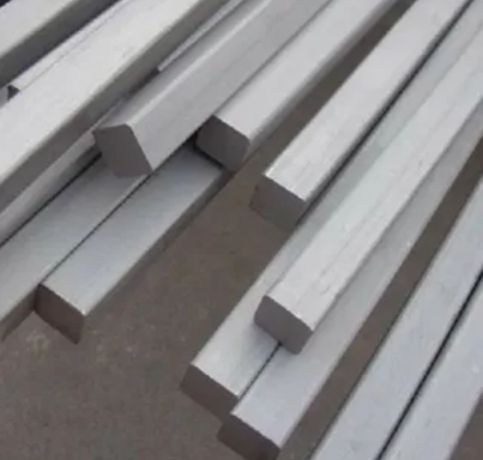

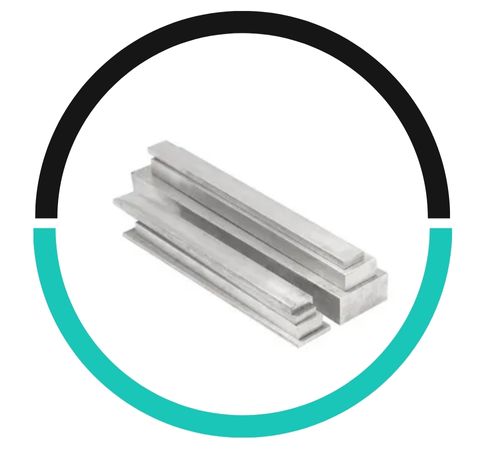

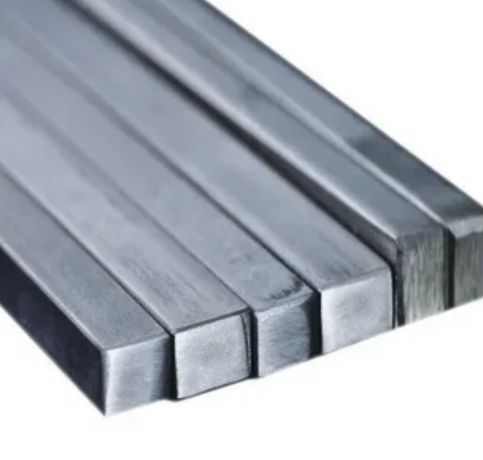

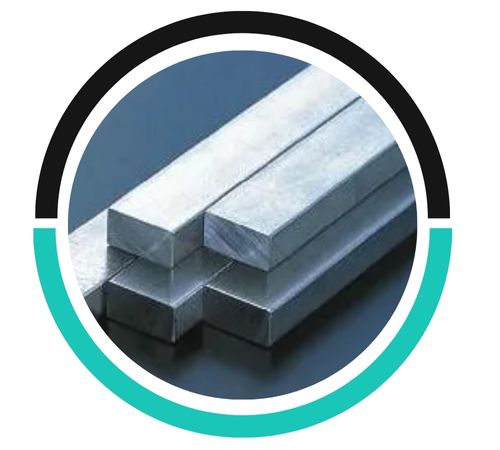

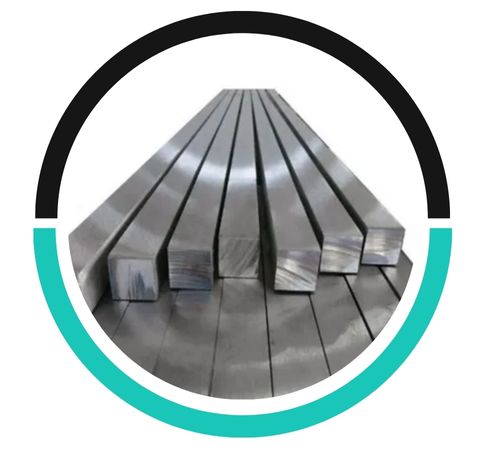

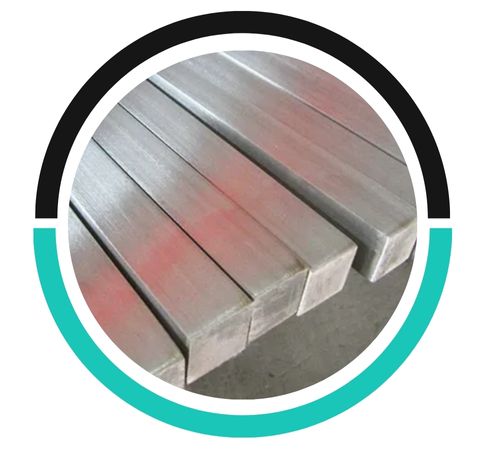

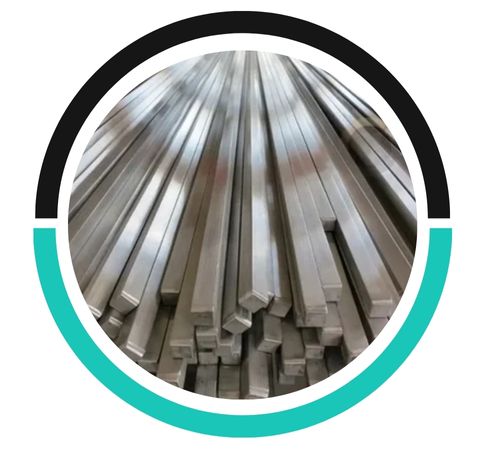

Garg Steels, located in Chennai, India, stands out as a top manufacturer and supplier of high-quality Stainless Steel 904L Square Bars and Rods. These products are celebrated for their exceptional corrosion resistance and impressive strength. With a focus on high-performance stainless steel solutions, Garg Steels provides 904L grade bars and rods that adhere to international quality standards, making them perfect for use in highly corrosive settings. Known for their precision, durability, and outstanding finish, Garg Steels serves various industries, including chemical processing, marine, and pharmaceuticals, ensuring timely delivery, dependable service, and consistent quality. This commitment has solidified their reputation as a trusted name in the stainless steel market.
The Stainless Steel 904L Square Bars and Rods from Garg Steels boast a composition rich in chromium (19–23%), nickel (23–28%), molybdenum (4–5%), and copper (1–2%), all while maintaining low carbon content. This unique blend provides remarkable resistance to strong reducing acids and stress corrosion cracking. In terms of mechanical properties, these bars and rods have a tensile strength ranging from approximately 490–710 MPa, a yield strength of around 220 MPa, and exhibit good elongation and toughness. Additionally, SS 904L is known for its excellent weldability and formability, making it ideal for complex fabrication and long-term use in harsh chemical and marine environments.
| Specifications | ASTM B649 / ASME SB 649 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Stainless Steel Round Bar | Outside Diameter in the range of 4mm to 500mm |
| Stainless Steel Bright Bar | Outside Diameter in the range of 4mm to 100mm |
| Stainless Steel Hex Bar | 18mm – 57mm (11/16″ to 2-3/4″) |
| Stainless Steel Square Bar | 18mm – 47mm (11/16″ to 1-3/4″) |
| Stainless Steel Flat Bar | 1/2″ to 10″ in thickness range of 2 mm to 150mm, Custom Size Stainless Steel Flats available |
| Range | 3.17 MM TO 350 MM DIA |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finishing | Bright, Polish & Black |
| Form of | Hex, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Other Services | Machining (CNC), Centreless Grinding (CG), Heat Treatment, Annealing, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication, |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| SS 904L | Min | – | – | – | – | – | 19 | 4 | 23 | 1 |
| Max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
| Grade | Tensile strength (MPa) | Yield Strength 0.2% Proof(MPa) | Elongation (% in 50mm) | Hardness – Brinell |
| 904L | 490 | 220 | 36 | 70-150 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Garg Steels’ Stainless Steel 904L Square Bars and Rods find extensive use in industries where top-notch corrosion resistance is crucial. In chemical and petrochemical facilities, they are essential for constructing reactors, tanks, and piping systems that handle aggressive acids like sulfuric and phosphoric acid. The marine sector relies on them for seawater equipment due to their resistance to chlorides. Additionally, the pharmaceutical and food processing industries favor SS 904L for its hygienic properties. These bars and rods are also perfect for heat exchangers, equipment in the pulp and paper industry, and pollution control systems. Their durability, strength, and corrosion resistance make them a go-to choice for demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
