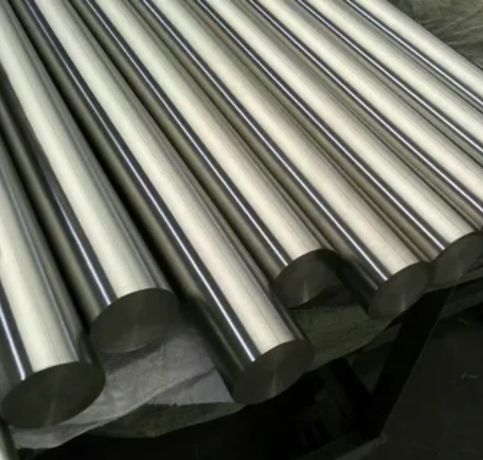

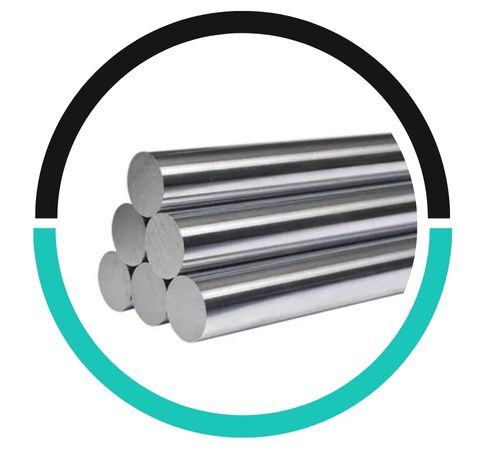

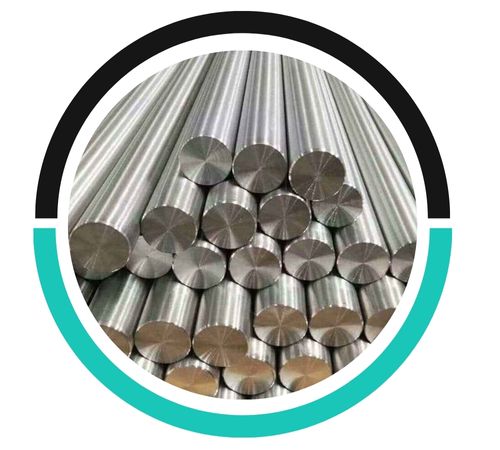

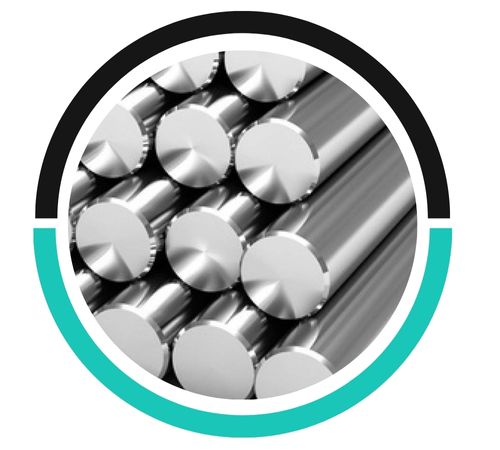

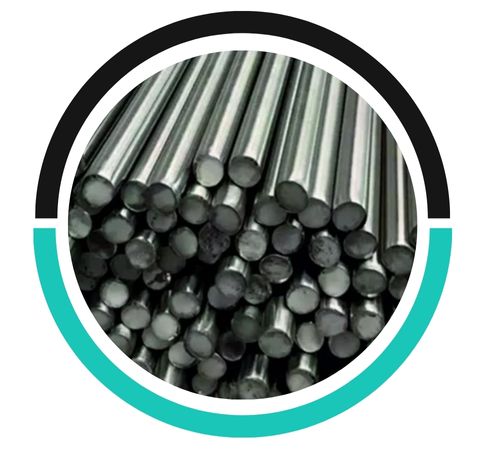

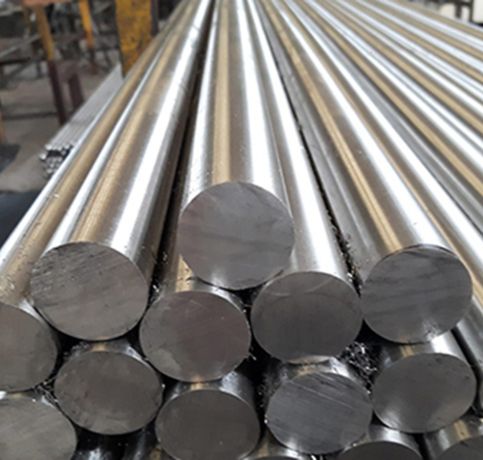

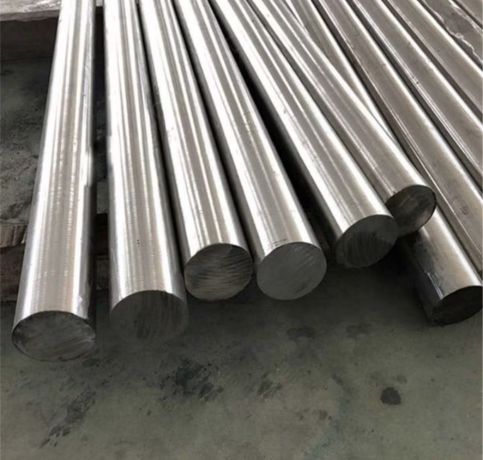

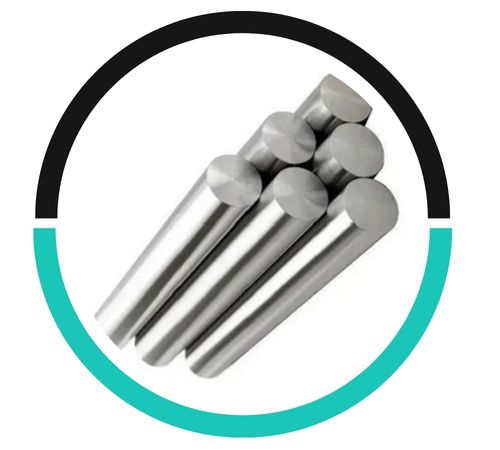

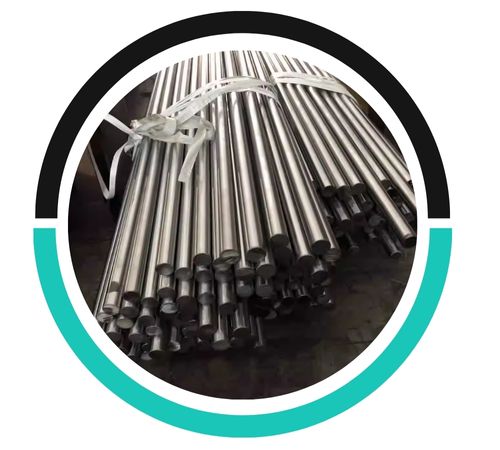

Garg Steels, a well-respected manufacturer and supplier located in Chennai, India, specializes in high-quality Stainless Steel Bright Bars and Rods. These products are celebrated for their flawless surface finish, precise dimensions, and exceptional strength. Crafted through meticulous cold drawing and polishing techniques, they’re perfect for a variety of industrial and commercial uses. With a strong focus on quality and timely delivery, Garg Steels caters to a wide range of industries, including automotive, construction, engineering, and fabrication. Their stainless steel offerings meet international standards and are known for their durability, visual appeal, and resistance to corrosion.
Stainless Steel Bright Bars and Rods are typically made from grades such as 304, 316, and 410. These grades usually contain 16–26% chromium, 8–22% nickel, and sometimes molybdenum to boost corrosion resistance. The bright bars boast a tensile strength ranging from 485–700 MPa and a yield strength between 170–450 MPa, depending on the specific grade. Their smooth surface finish is achieved through cold finishing and polishing, which also enhances their straightness and tolerance. These bars offer excellent machinability, corrosion resistance, and mechanical strength, making them perfect for precision engineering and structural applications.
Standards : ASTM A276, ASTM A484, AISI
Grade : 201, 202, 301, 302, 303, 304, 304H, 304L, 316, 316H, 316L, 309, 309S, 310, 310S, 316Ti, 317, 317L, 347, 321, 321H, 410, 416, 420, 430, 430F, 431, 440C, 630, 17-4PH, F51
Range : from2.00mm to 6.35mm (0.078″ to 0.25″)dia.
Tolerance : DIN 671, ASTM A484 & as per customer’s specific requirement.
Finish : Cold drawn, Centreless Ground, Polished
| Grade | Su | C | Si | P | Cr | Ni | M | Mo | Other |
|---|---|---|---|---|---|---|---|---|---|
| 316 | 0.030 max | 0.08 max | 0.75 max | 0.045 max | 16.0-18.0 | 10.0 14.0 | 2.00 max | 2.0 3.0 | – |
| 317L | 0.030 max | 0.035 max | 0.75 max | 0.045 max | 18.0-20.0 | 11.0 14.0 | 2.00 max | 3.0 4.0 | – |
| 304 | 0.030 max | 0.08 max | 0.75 max | 0.045 max | 18.0-20.0 | 8.0 11.0 | 2.00 max | – | – |
| 310 S | 0.030 max | 0.08 max | 1.5 max | 0.045 max | 24.0-26.0 | 19.0 22.0 | 2.00 max | 3.0 4.0 | – |
| 347 H | 0.030 max | 0.04 0.10 | 0.75 max | 0.045 max | 17.0- 19.0 | 9.0 13.0 | 2.00 max | – | 10C(Cb+Ta)<1.10% |
| 321 | 0.030 max | 0.08 | 0.75 max | 0.045 max | 17.0-20.0 | 9.0 12.0 | 2.00 max | – | 5C 0.70% |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Density | Elongation | Melting Point |
|---|---|---|---|---|---|
| SS 303 | Psi – 85,000 | Psi – 45,000 | 55% | 50 % | Rb 180 |
| SS 202 | 515 MPa | 275 MPa | 8.0 g/cm3 | 40 % | 1454 °C |
| SS 304 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 8.0 g/cm3 | 40% | 1400 °C |
| SS 304L | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 8.0 g/cm3 | 40% | 1400 °C |
| SS 316 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 8.0 g/cm3 | 35 % | 1454 °C |
| SS 316L | 485 Min | 170 Min. | 8.0 g/cm3 | 40 % | 1400 °C |
|
Drawn Bar |
Min. (mm) |
Max. (mm) |
Drawn Bar |
Min. (inch) |
Max. (inch) |
|---|---|---|---|---|---|
|
Rounds |
14 mm |
76 mm |
Rounds |
5/8” |
3” |
|
Flats Width :
Height : |
20 mm
5mm |
100 mm
40 mm |
Flats Width :
Height : |
3/4″
1/2″ |
4”
1-1/2” |
|
Squares |
14 mm |
65 mm |
Squares |
1/2″ |
2-1/2” |
|
Hexagonals |
12 mm |
60 mm |
Hexagonals |
5/8” |
2” |
|
Bright Bar Weight Calculation Formula |
|
|
Bright Bar Weight Formula
0.00623 X ( mm ) Diam X ( mm ) Diam = Weight / Meter
0.0019 X ( mm ) Diam X ( mm ) Diam = Weight / Feet |
Square Bar Weight Formula0.00788 X ( mm ) Diam X ( mm ) Diam = Weight / Meter
0.00240 X ( mm ) Diam X ( mm ) Diam = Weight / Feet
|
|
Brightagonal Bar Weight Forumla
0.00680 X ( mm ) Diam X ( mm ) Diam = Weight / Meter
0.002072 X ( mm ) Width X ( mm ) Diam = Weight / Feet |
Bright Bar Weight Forumla
0.00798 X ( mm ) Thickness X ( mm ) Width = Weight / Meter
0.00243 X ( mm ) Width X ( mm ) Thickness = Weight / Feet |
Stainless Steel Bright Bars and Rods are widely utilized in situations where both surface quality and strength are essential. They’re perfect for automotive shafts, fasteners, machined components, tooling, and grills. In sectors like construction, textiles, defense, and electrical engineering, these rods are favored for their outstanding formability, wear resistance, and corrosion protection. Their shiny polished finish also makes them ideal for aesthetic and architectural applications, such as railings, furniture, and fixtures. Thanks to their precise dimensions, they are extensively used in CNC machining.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
