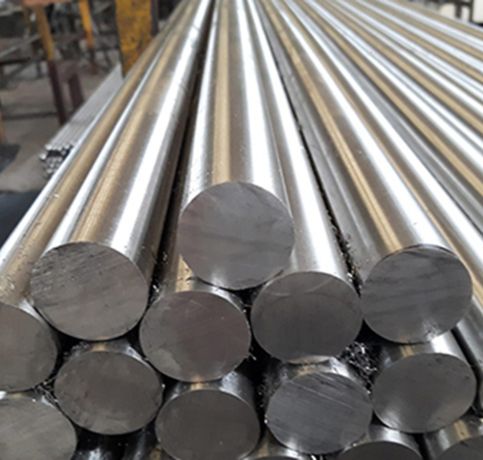

Garg Steels, a reputable manufacturer and supplier located in Chennai, India, specializes in top-notch Stainless Steel 440C Bars and Rods designed for high-performance industrial applications. Renowned for their remarkable hardness, wear resistance, and strength, 440C is a high-carbon martensitic stainless steel grade that excels in demanding mechanical environments. Garg Steels guarantees precision in manufacturing, dimensional accuracy, and compliance with international standards, making their products perfect for critical operations. These bars and rods find extensive use in industries like toolmaking, aerospace, automotive, and medical, where high strength, edge retention, and corrosion resistance are essential for optimal performance and durability.
Stainless Steel 440C Bars and Rods consist of about 16–18% chromium, 0.95–1.20% carbon, along with trace amounts of manganese, silicon, and molybdenum. This martensitic stainless steel achieves a high hardness range (up to 60 HRC) when heat-treated, offering excellent wear resistance and moderate corrosion resistance. It boasts a tensile strength of approximately 760–950 MPa and good dimensional stability. 440C is well-suited for high-stress applications that require strength, hardness, and edge retention, although its corrosion resistance is somewhat lower than that of austenitic stainless steels, particularly in marine or acidic environments.
| Specification | ASTM A479/ SA479 ASTM A276/ ASME SA276 |
|---|---|
| Grade | Stainless Steel 440C (UNS S44004) |

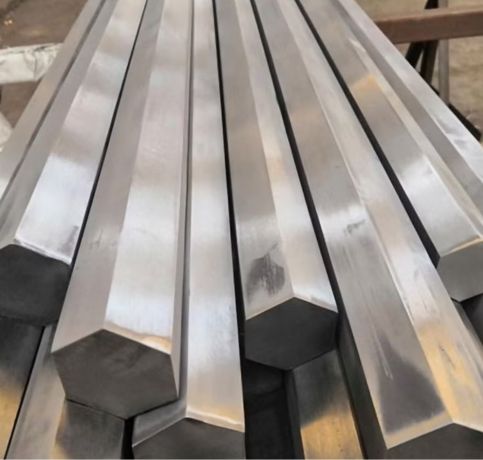

| Hex Bar size | 18 to 57mm (11/16″ – 2-3/4″) |

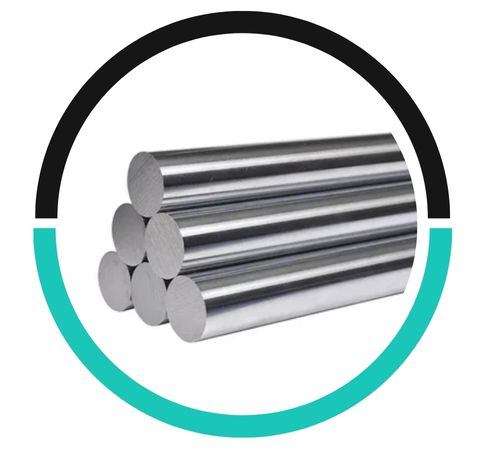

| Round bar size | OD 4mm to 500mm |

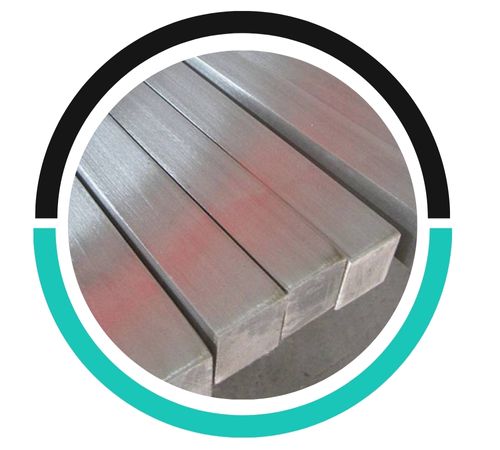

| Square bar size | 18mm to 47mm (11/16″- 1-3/4″) |
| Billet Size | 1/2″- 495mm Dia. |
| Rectangles Size | 33 x 30mm – 295 x 1066mm |
| Bright Bar | OD 4mm to 100mm |
| Tolerance | K12 H12, K10, H9, H11, H8, H13K9, H10, K11, or as per need |
| Flat bar size | 1/2” to 10” in thickness of 2 to 150mm |
| Angle bar size | 3*20*20~12*100*100 |
| Finish | centreless ground, Cold (bright) drawn, hot rolled, peeled, smooth turned, hot rolled annealed, slit rolled edge, Bright, Rough Turned, Grinding, Polish & Black |
| Form | Flat Bar, Hollow, Round, Square, Triangle, Rectangle, Half Round Bar, Rod, T-Bar, Precision Ground Bar, Hex (A/F), Blocks, Channel Bar, Threaded, Round Rod, Billet, Profiles, I/H Bar, Ingot, Rings, Forging etc. |

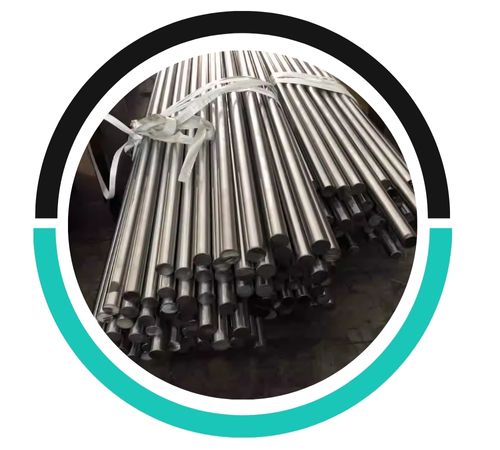

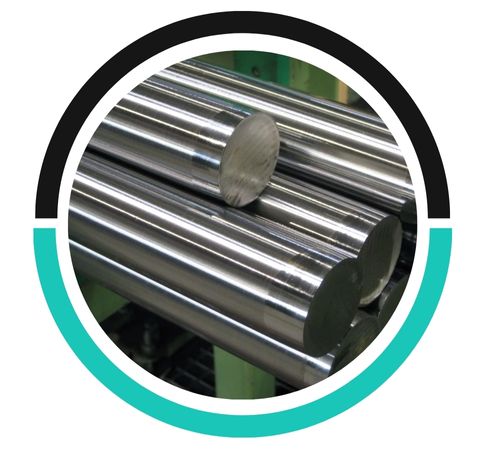

| Technique | 440C Stainless Steel Hot Rolled, Cold Drawn, Rod, Forged Round Bar, Cold Rolled |
| Condition | annealed, Hardened & tempered |
| Section | 3.0 -12.0 mm thickness, 80 x 40 to 150 x 75mm section |
| Channel Bar | 5.0 – 6.0mm thickness |
| Surface | Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Polished, Hairline |

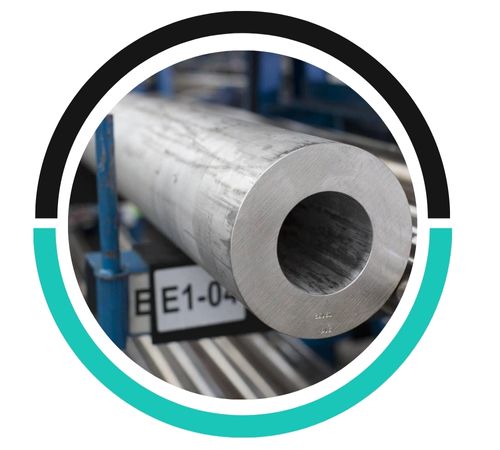

| Hollow Bar | 32mm OD x 16mm ID – 250mm OD x 200mm ID |
|
SS 440C |
Min |
Max |
|---|---|---|
|
Si |
– |
1.00 |
|
C |
0.95 |
1.20 |
|
Mo |
0.00 |
0.75 |
|
P |
– |
0.04 |
|
Ni |
– |
1.00 |
|
Mn |
– |
1.00 |
|
Cr |
16.00 |
18.00 |
|
S |
0.15 |
0.03 |
|
Element |
SS 440C |
|---|---|
|
Tensile (UTS)N/mm² |
1965 |
|
Temp°C |
20 |
|
Reductionof Area |
10 |
|
Elongation(50.8mm) %) |
2 |
|
0.2% YieldN/mm² |
1896 |
|
HardnessHRc |
57 |
|
STANDARD |
UNS |
WERKSTOFF NR. |
JIS |
|---|---|---|---|
|
SS 440C |
S44004 |
1.4125 |
SUS 440C |
Stainless Steel 440C Bars and Rods are commonly utilized in applications that require high hardness, strength, and resistance to wear and abrasion. In the tool and die industry, they are crafted into blades, cutting tools, and dies. In the automotive and aerospace fields, they are essential for shafts, valve components, and bearing parts that need precise performance under stress. The medical sector employs 440C for surgical instruments due to its hardness and ability to be polished. Furthermore, these rods are also used in mechanical engineering, military equipment, and various industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
