Garg Steels, a prominent manufacturer and supplier based in Chennai, India, is renowned for its precision-engineered Titanium Grade 5 Forgings. These forgings are celebrated for their remarkable strength, outstanding corrosion resistance, and exceptional performance even at high temperatures. Commonly referred to as Ti-6Al-4V, this alloy is the go-to choice in both aerospace and industrial sectors. Garg Steels offers Grade 5 forgings in various sizes and specifications, all while adhering to rigorous quality control and international standards. With a focus on expert manufacturing and timely delivery, Garg Steels reliably supports critical industries such as aerospace, marine, medical, and petrochemical.
Titanium Grade 5 (Ti-6Al-4V) Forgings are composed of roughly 6% aluminum, 4% vanadium, and 90% titanium, striking a perfect balance between strength, corrosion resistance, and heat tolerance. This alloy boasts a tensile strength ranging from 900 to 1100 MPa, a yield strength of about 880 MPa, and impressive fatigue resistance. Its density is approximately 4.43 g/cm³. Grade 5 maintains its structural integrity in high-temperature settings (up to 400°C) and offers good weldability when annealed. These characteristics make it an ideal choice for high-performance, weight-sensitive, and high-stress applications across various industries.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
Durability of Titanium Grade 5 forgings is ensured by proper heat treatment, controlled forging process, precise die design, alloy composition, and maintaining optimal surface finish, enhancing strength, corrosion resistance, and fatigue resistance.
Titanium Gr 5 forgings are commonly used in aerospace, automotive, medical, marine, and defense industries, providing high strength, corrosion resistance, and lightweight properties for critical components and high-performance applications.

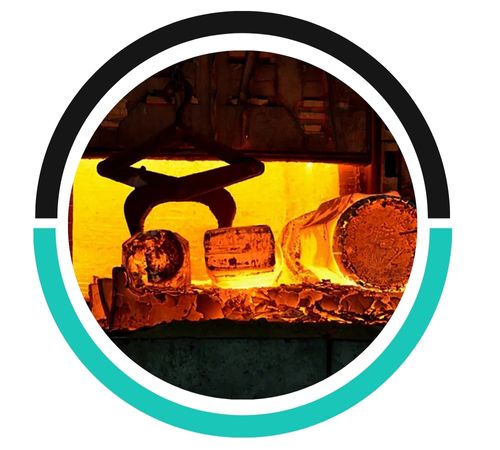

Closed-die forging in Titanium Gr 5 production involves shaping titanium by compressing it between two shaped dies, ensuring precise dimensions, high strength, and improved material properties for demanding applications.
Titanium Grade 5 Forgings find extensive use in aerospace components like turbine blades, engine parts, and structural frames, thanks to their lightweight nature and high strength. In the medical arena, Grade 5 is favored for orthopedic implants and surgical instruments due to its biocompatibility. It’s also a popular choice for marine hardware, automotive components, offshore oil and gas platforms, and power generation equipment. The alloy’s resistance to fatigue and corrosion makes it perfect for long-term use in challenging environments. Garg Steels provides top-notch Titanium Grade 5 Forgings customized to meet the exacting standards required for demanding industrial and commercial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
