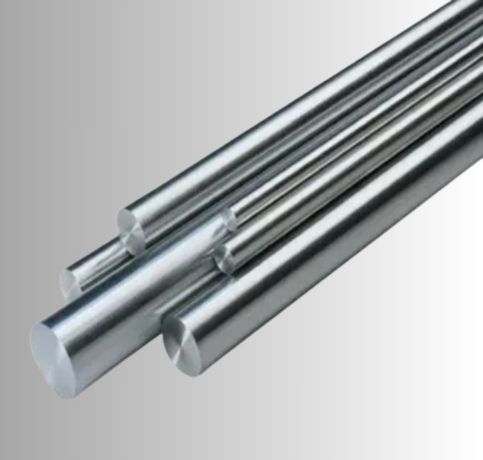

Garg Steels, a prominent manufacturer and supplier located in Chennai, India, focuses on producing high-performance Titanium Grade 11 Bars and Rods, designed to withstand harsh corrosive environments. This titanium grade is a commercially pure alloy enriched with palladium, which significantly boosts its corrosion resistance, particularly in reducing and mildly oxidizing settings. With a strong dedication to precision manufacturing and adherence to international quality standards, Garg Steels offers tailored solutions for a variety of industrial sectors. Their Titanium Grade 11 Bars and Rods are trusted in critical applications that require durability, reliability, and outstanding mechanical integrity, especially in challenging chemical and marine conditions.
Titanium Grade 11 Bars and Rods are primarily made up of titanium (about 99.2%) with a small addition of 0.12–0.25% palladium, which enhances their corrosion resistance in reducing environments. They share similar mechanical properties with Grade 1 titanium but boast improved resistance to crevice corrosion and stress corrosion cracking. The tensile strength ranges from 240 to 360 MPa, with a yield strength of around 170 MPa and an elongation of up to 24%. Titanium Grade 11 is also known for its excellent weldability, ductility, and formability, making it perfect for critical applications in industries facing harsh chemical, saline, or acidic conditions.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

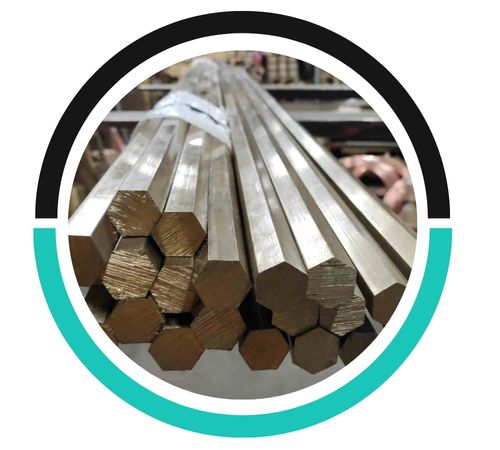

| Hex Bar size : | 2-100mm A/F |

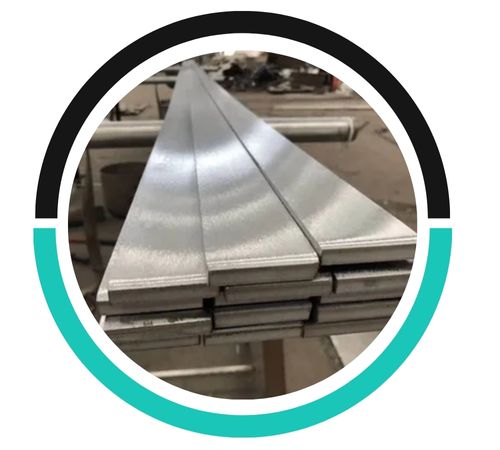

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

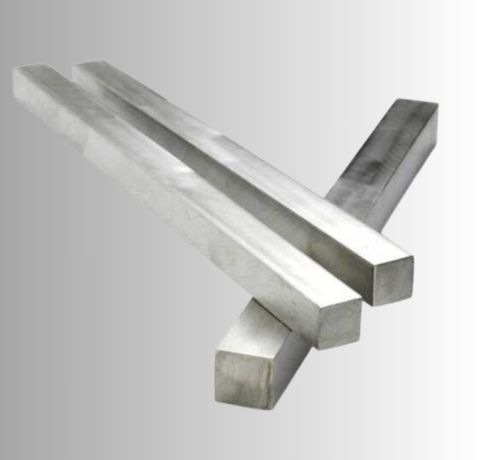

| Square bar size : | 4 to 100mm |

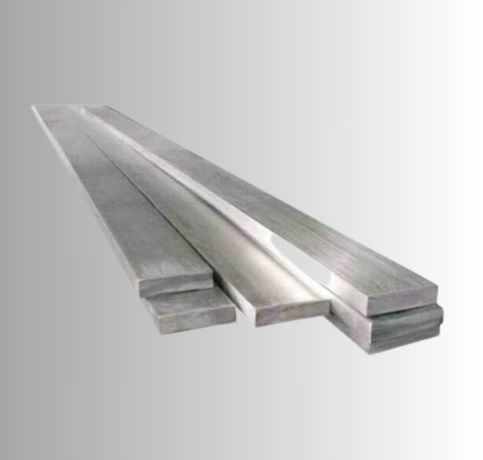

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

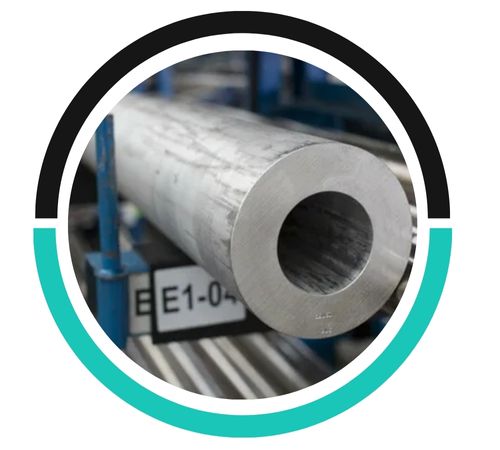

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

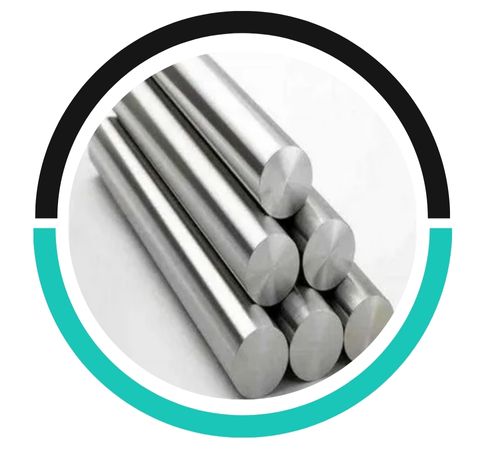

| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 11 | 3.7225 | R52250 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 11 | 0.08 max | 0.20 max | 0.03 max | Balance | 0.015 max | 0.18 max |
| Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3, (4.51 g/cm3) | 240 | 170 | 24 % |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
|---|---|---|---|---|---|---|---|---|
| Titanium Gr 11 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@gargsteels.com
Common titanium grades for bar manufacturing include Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 11, and Grade 12, each offering unique strength and corrosion resistance.
Titanium Grade 11 Bars and Rods find extensive use in the chemical processing, marine, desalination, and pollution control sectors, thanks to their remarkable corrosion resistance and formability. These bars are perfect for components in heat exchangers, condensers, pressure vessels, and storage tanks that deal with aggressive substances like chlorides and acids. Their biocompatibility also makes them a great choice for medical and pharmaceutical uses. In offshore and underwater settings, Titanium Grade 11 ensures exceptional longevity and performance. Garg Steels provides these rods in customized dimensions to meet specific industry needs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
