Garg Steels, a well-respected name in the metal industry located in Chennai, India, stands out as a top manufacturer and supplier of Titanium Grade 3 Bars and Rods. Renowned for delivering high-quality titanium products, Garg Steels guarantees precision, strength, and reliability in every bar and rod they produce. Titanium Grade 3 is a commercially pure titanium that boasts greater strength compared to Grades 1 and 2, making it perfect for critical industrial applications. With rigorous quality control, tailored dimensions, and compliance with international standards, Garg Steels serves the aerospace, chemical, and marine sectors with trustworthy Titanium Grade 3 Bars and Rods.
Titanium Grade 3 Bars and Rods consist of 99.2% pure titanium, along with trace amounts of oxygen (up to 0.35%), nitrogen (0.05%), carbon (0.10%), iron (0.30%), and hydrogen (0.015%). This grade is known for its excellent corrosion resistance and moderate formability, offering higher strength than Grades 1 and 2. Its mechanical properties include a tensile strength of about 620 MPa, yield strength around 480 MPa, and an elongation of roughly 18%. Titanium Grade 3 is non-magnetic, biocompatible, and resistant to a variety of corrosive environments, making it a great choice for demanding industrial and structural applications
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

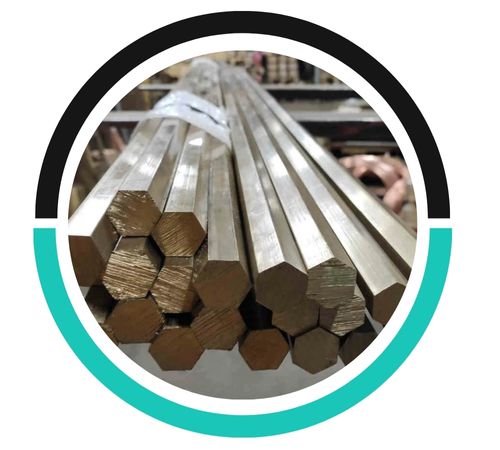

| Hex Bar size : | 2-100mm A/F |

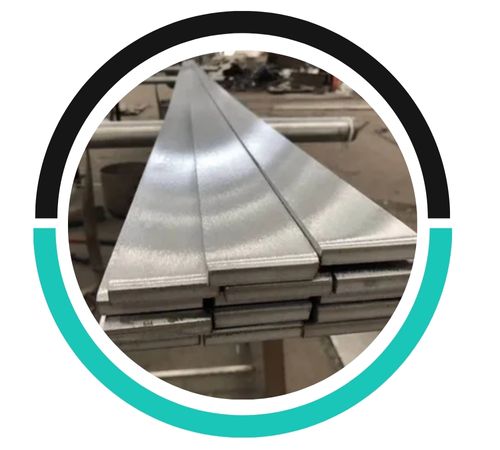

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

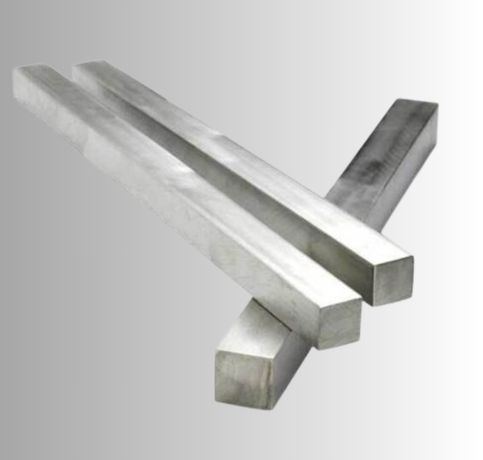

| Square bar size : | 4 to 100mm |

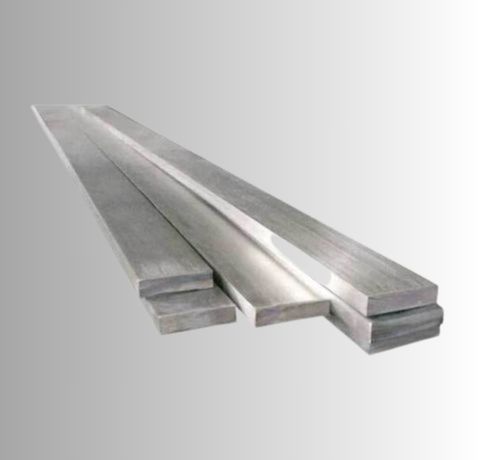

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

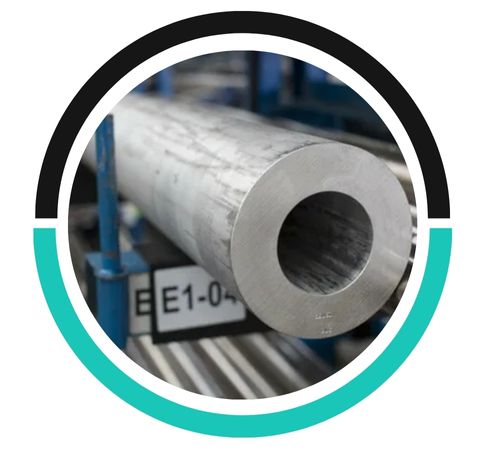

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

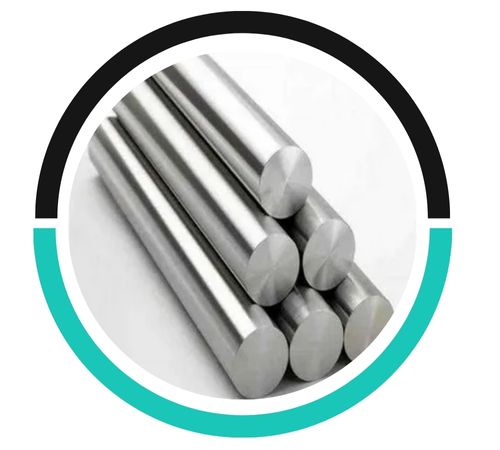

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@gargsteels.com
Titanium Grade 3 Bars and Rods find extensive use in industries that demand high strength and corrosion resistance in extreme conditions. Typical applications include components for aerospace structures, chemical processing equipment, marine hardware, heat exchangers, and medical instruments. Thanks to its biocompatibility, it’s also utilized in surgical implants and medical devices. Its resistance to chloride environments and oxidizing media makes it an excellent fit for desalination plants and offshore structures. Garg Steels offers Titanium Grade 3 Bars and Rods in a range of diameters and finishes, catering to a diverse clientele across aerospace, marine, defense, and chemical processing industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
