Garg Steels, a well-respected manufacturer and supplier located in Chennai, India, specializes in high-quality Titanium Grade 7 Bars and Rods, celebrated for their remarkable corrosion resistance and durability. This particular grade of titanium is an alloy that combines commercially pure titanium with a touch of palladium, which significantly boosts its resistance to corrosion, especially in harsh acidic environments. At Garg Steels, every product is crafted with meticulous attention to detail and adheres to international standards, catering to various industries like chemical processing, marine, and desalination. With a strong focus on quality, tailored solutions, and prompt deliveries, Garg Steels has become a reliable source for top-notch Titanium Grade 7 Bars and Rods throughout India.
Titanium Grade 7 Bars and Rods are made up of about 99.2% commercially pure titanium, with an addition of 0.12–0.25% palladium. This alloy maintains the impressive mechanical properties of Grade 2 while providing enhanced corrosion resistance, particularly against reducing acids such as hydrochloric and sulfuric acid. The mechanical properties include a tensile strength ranging from 450 to 550 MPa, a yield strength of around 380 MPa, and an elongation of about 20%. Titanium Grade 7 is non-magnetic, weldable, and stable at high temperatures, making it perfect for critical applications in extremely corrosive settings.
| Grade | ASTM B348 Ti Gr7 Flat Bar |
|---|---|

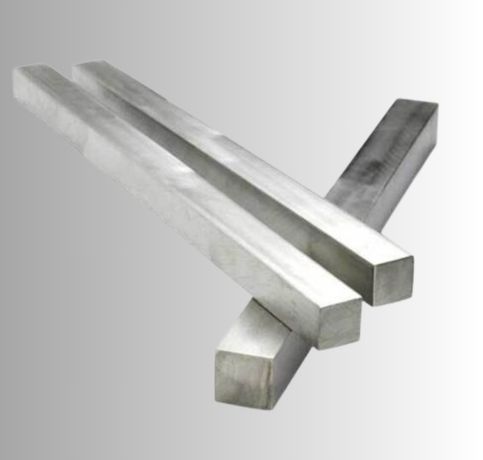

| Titanium Grade 7 Square bar size | 4 to 100mm |

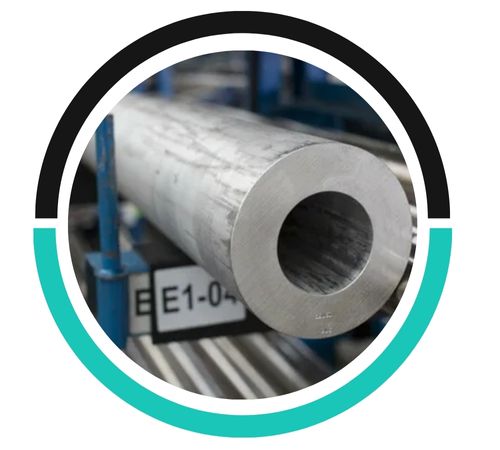

| Titanium Alloy Grade 7 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

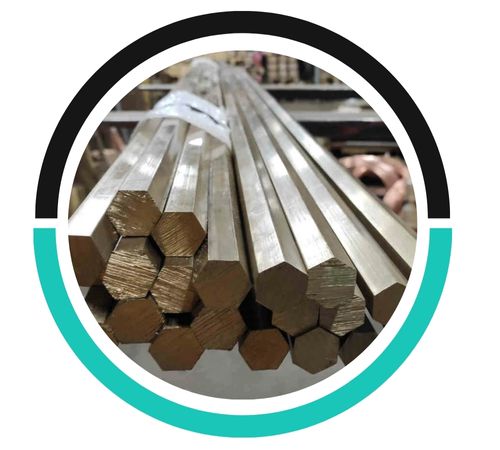

| CP Titanium Alloy Gr7 Hex Bar size | 2-100mm A/F |
| Titanium Grade 7 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

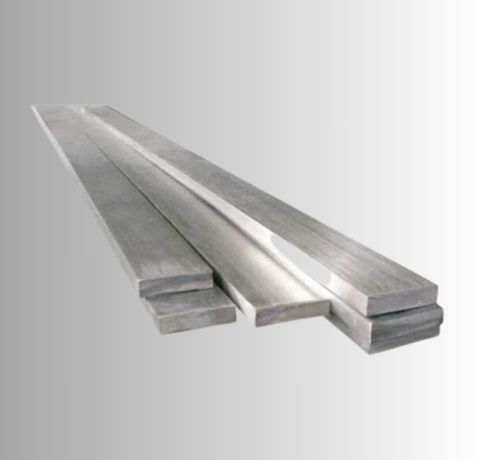

| Titanium Alloy Grade 7 Rectangles Size | 33 x 30mm to 295 x 1066mm |

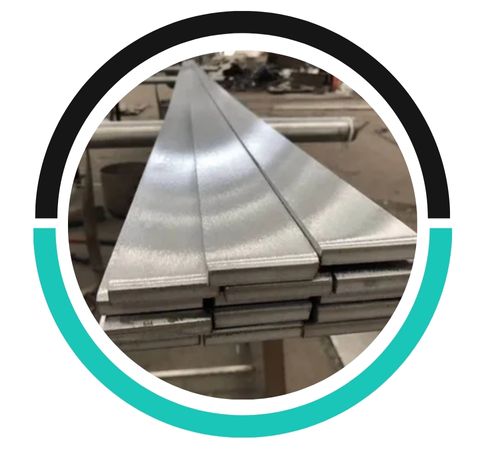

| CP Titanium Alloy Gr7 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Titanium Grade 7 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Titanium Alloy Grade 7 Section | 3.0 to 12.0mm thickness |

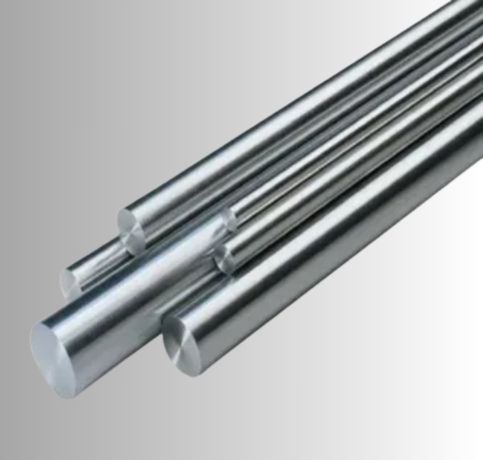

| CP Titanium Alloy Gr7 Round bar size | Diameter: 3-~800mm |
| Titanium Grade 7 Billet Size | 1/2″ to 495mm Diameter |
| Titanium Alloy Grade 7 Round Bar Standard Dimensions | Diameter / Height: |

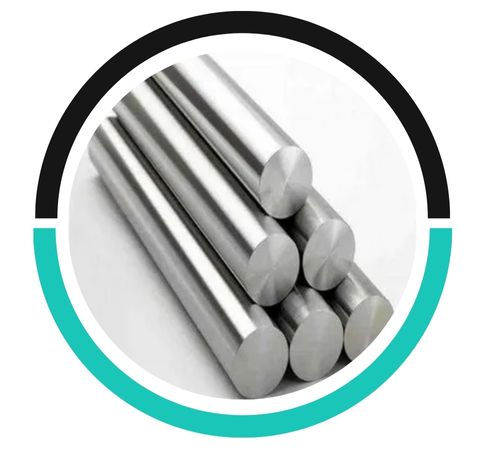

| Titanium Grade 7 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Titanium Alloy Grade 7 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| CP Titanium Alloy Gr7 Technique | Titanium Grade 7 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Titanium Grade 7 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

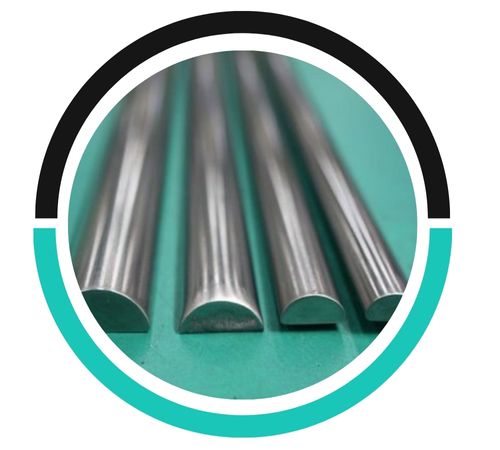

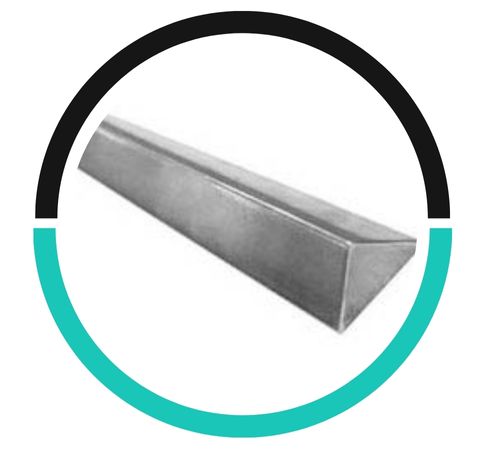

| Form | Titanium Grade 7 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Titanium Grade 7 Round bar conforms to NACE MR0175/ISO 15156 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 7 | 3.7235 | R52400 |
| Grade | C | Fe | N | Ti | H | O | Pd |
| Titanium Gr. 7 | 0.08 max | 0.30 max | 0.03 max | Balancen | 0.0150 max | 0.25 max | 0.20 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3 | 1668 °C | Psi – 39900 , MPa – 275 | Psi – 59500 , MPa – 410 | 20 % |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 7 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 7 Bars and Rods can be recycled. Titanium is highly recyclable without significant degradation of its properties, making it an environmentally sustainable material for reuse in various applications.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@gargsteels.com
No, Titanium Grade 7 Bars and Rods do not attract magnets. Titanium, including Grade 7, is a non-ferromagnetic material, meaning it has little to no magnetic properties and is not attracted to magnets.
Titanium Grade 7 Bars and Rods find extensive use in scenarios that demand exceptional corrosion resistance, particularly in chemically aggressive and reducing environments. Common applications include components for chemical processing facilities, desalination systems, pollution control equipment, and marine uses. Their outstanding resistance to crevice corrosion and stress corrosion cracking makes them ideal for heat exchangers, piping systems, reactors, and tanks that handle strong acids. Additionally, Titanium Grade 7 is biocompatible, making it suitable for the medical and pharmaceutical sectors. Garg Steels provides customized sizes and specifications of Grade 7 products to meet diverse client needs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
